Cross Linked Polyethylene Heat Resistant Foam Fire Fighting Xpe / Ixpe Board

Brand Name : CYG

Model Number : NON

Certification : UL94-HF-1

Place of Origin : China

MOQ : 3000 SQM

Price : USD 0.8~5.1 Kg/m3

Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 500 tons per month

Delivery Time : 5~12 work days

Packaging Details : PE bag

PE : Gray

Feature 1 : Shatter proof

Feature 2 : Light weight

Color : Silver/yellow/blue,blue and so on

Application : Construction,heat insulation

Thickness : 3-30mm(sheet)

Density : 25~330 kg/m3

Length : 30m/40m or customized by customer's request

Width : 1m/1.2m/1.4m/1.5m

Thermal conductivity : 0.034w/mk

Product name : Fire Retardant Foam Insulation Board

Contact Now

Cross-linked Polyethylene Fire Fighting Xpe / Ixpe Foam Laminated Foam Board

Product details

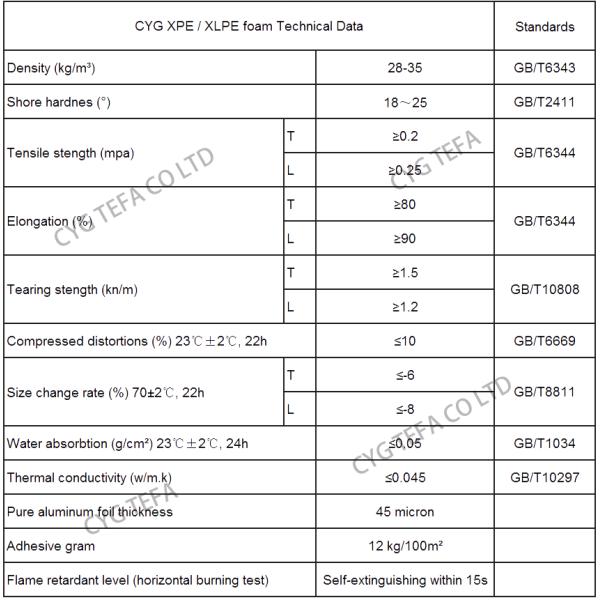

CYG FOAM SPEC		3BXPE	5BXPE	8BXPE	10BXPE	15BXPE
Density	Kg/m3	300±40	200±30	125±15	100±10	66.7±8
	Lb/ft	16.23~21.22	10.61~14.36	6.86~8.74	5.62~6.87	3.62-~4.68
Hardness Shore C	T＞3mm	65～75	60～70	50～60	45～50	35～45
	T≤3mm	60～70	55～65	45～55	40～45	30～40
Water Absorption	%	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3
Thermal Conductivity	W/mk	≤0.095	≤0.095	≤0.084	≤0.073	≤0.065
CYG FOAM SPEC		20BXPE	25BXPE	30BXPE	35BXPE	40BXPE
Density	Kg/m3	50±6	40±4	33.3±3	28.6±3	26±3
	Lb/ft	2.88~.50	2.28~2.75	1.87~2.25	1.56~1.94	1.44~1.81
Hardness Shore C	T＞3mm	30～35	25～30	18～25	13～18	13～18
	T≤3mm	25～30	20～25	15～20	15～20	15～20
Water Absorption	%	≤0.4	≤0.4	≤0.4	≤0.5	≤0.5
Thermal Conductivity	W/mk	≤0.055	≤0.049	≤0.045	≤0.040	≤0.040

XPE / XLPE insulation pe foam is made by closed cell chemical cross-linked polyethylene foam, adhesive backing and faced with pure aluminum foil and it's flame retardant as well. Widely used in HVAC duct / pipe insulation.
CYG PE foam for ducts are manufactured at our state-of-the-art factory as per customer requirements. All the accessories for example fittings, attachments, components, and other goods are manufactured from the finest grade of material and cutting edge technology. CYG quality controllers check each and in details on well defined quality parameters. With competitive prices, if you need to be, the offered range of ducting is also facilitated with sound proofing and high degree insulation.

Advantages:

High foaming rate
Low density
Good elasticity
Good toughness
Thermal insulation
Energy saving
Noise reduction
Sound insulation
Anti-condensation
Corrosion and aging
Convenient

Specification:

Cross Linked Polyethylene Heat Resistant Foam Fire Fighting Xpe / Ixpe Board

Features:

Saves Energy: retain the temperature of the air they are transporting, reducing energy wastage.
Prevents Condensation on Ducts: XPE insulation provides a solid cover around the air ducts.
Reduces Noise Transmitted Indoors: XPE can carry sound waves all around the house and carry sounds across rooms such as the noise of the furnace turning on in phases as well.
Hot-dipped galvanized steel sheets of lock-forming quality are used for the manufacturing of standard ducts.
Ducts are also available in both, stainless steel and Aluminum.
All straight ducts have beading all along at a distance of 300 mm between them for reinforce.

Cross Linked Polyethylene Heat Resistant Foam Fire Fighting Xpe / Ixpe Board
